Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used

Product Categories
Chongqing Dongchong Aluminum Co., Ltd.
Contact Now

Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used

  • 1
  • 2
  • 3

Brand Name : Dongchong

Model Number : 1000-8000series

Certification : ISO,MTC,MSDS,ROHS,REACH,SGS

Place of Origin : Chongqing ,Dongchong

MOQ : 500-5000kg for different product

Price : negotiable

Payment Terms : TT/LC

Supply Ability : 10000 Tons per month

Delivery Time : 2-3days for stock , 7-10days for normal size .25-30days for customized size

Packaging Details : Wooden pallet , Wooden Box

Grade : 1060 1050 1070

Temper : O-H112, H12. H14. H16. H18. H24. H26. H32. O

Usage : Refrigerator inner panel

Standard : GB/T3880,GB/T3190,ASTM-B209

Surface finish : Plain,Anodized,Polish,Mill finish,Powder Coated

Packing : Wooden Pallet

Contact Now

Orange Peel Diamond Aluminum Sheet for Refrigerator Inner Panel Used





Production Description



                                                               Aluminium Tread plate
Alloy 1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011
Temper H14,H18,H24,H32 ,H112, H114, T4,T6 ,T651,O
Thickness (mm) 0.4mm to 20mm
Width (mm) Up to 1800mm
Length (mm) Up to 6000mm
Standard GB/T3880-2012
MOQ 5ton
Application 1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall
2)Household appliances: refrigerators, microwave ovens, audio equipment, etc.



Application

1, The advantages of tread plate are slip resistant, corrosion resistant, hygienic, protective and attractive.

2, Tread plate can be found in parking lots, garages, stairways, step ladders, elevators, loading docks, warehouses, distribution centers, hospitals, factories, ships, floating docks, refrigerator trucks, walk-in freezers, elevators, walkways, handicapped access ramps, truck tool boxes, trailers, and much more.



Temper Specified Thickness, mm Tensile Strength, MPa Yield Strength (0.2 % offset), MPa Elongation, min, %c
over through min max min max in 50 mm in 5x Diameter (5.65 V^)
Aluminum 1060
0 0.15 0.32 55 95 15   15
  0.32 0.63 55 95 15   18
  0.63 1.20 55 95 15   23
  1.20 6.30 55 95 15   25
  6.30 80.00 55 95 15   25 22
H12d 0.40 0.63 75 110 60   6
or 0.63 1.20 75 110 60   7
H22d 1.20 6.30 75 110 60   12
  6.30 50.00 75 110 60   12 10
H14d 0.20 0.32 85 120 70   1
or 0.32 0.63 85 120 70   2
H24D 0.63 1.20 85 120 70   6
  1.20 6.30 85 120 70   10
  6.30 25.00 85 120 70   10 9
H16d 0.15 0.32 95 130 75   1
or 0.32 0.63 95 130 75   2
H26D 0.63 1.20 95 130 75   4
  1.20 4.00 95 130 75   5
H18D 0.15 0.32 110   85   1
or 0.32 0.63 110   85   2
H28d 0.63 1.20 110   85   3
  1.20 3.20 110   85   4
H112 6.30 12.50 75       10
  12.50 40.00 70         18
  40.00 80.00 60         22
  6.30 80.00
Aluminum 1100
O 0.15 0.32 75 105 25   15
  0.32 0.63 75 105 25   17
  0.63 1.20 75 105 25   22
  1.20 6.30 75 105 25   30
  6.30 80.00 75 105 25   28 25
H12D 0.40 0.63 95 130 75   3
or 0.63 1.20 95 130 75   5
H22d 1.20 6.30 95 130 75   8
  6.30 12.50 95 130 75   10 9
  12.50 50.00 95 130 75   10
H14D 0.20 0.32 110 145 95   1
or 0.32 0.63 110 145 95   2
H2d 0.63 1.20 110 145 95   3
  1.20 6.30 110 145 95   5
  6.30 12.50 110 145 5   7 6
  12.50 25.00 110 145 95   7 6
H16D 0.15 0.32 130 165 115   1
or 0.32 0.63 130 165 115   2
H26D 0.63 1.20 130 165 115   3
  1.20 4.00 130 165 115   4
H18D 0.15 0.32 150       1
or 0.32 0.63 150       1
H28d 0.63 1.20 150       2
  1.20 3.20 150       4
H112 6.30 12.50 90   50   9
  12.50 40.00 85   40     12
  40.00 80.00 80   30     18
  6.30 80.00








Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used



Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used

Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used



Company Introduction

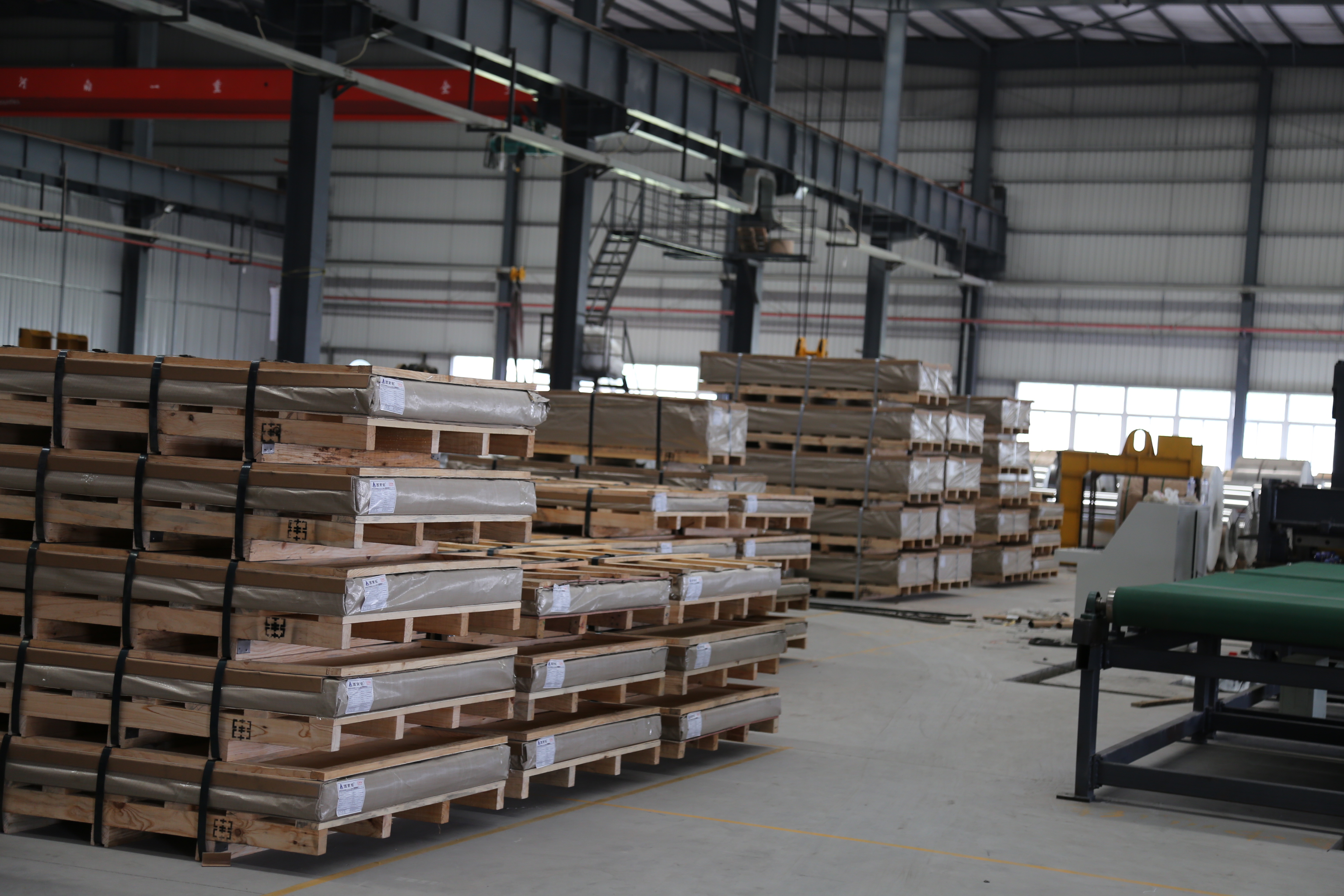

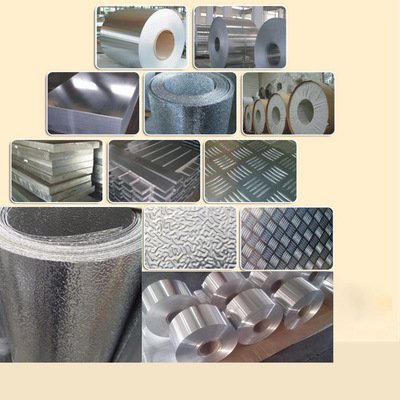

Chongqing Dongchong Aluminum Co,Ltd. Established in 2002,located in Industrial Park ,Xipeng Town,Jiulongpo District,Chongqing City . We are supplier of Aluminum coil , foil,strip,sheet,tube ,bar or as customer’s requirement.



Our Advantage are precise facility,responsible and good worker ,big stock for regular size ,fast delivery, best service even you buy one piece,quick response for each requirement.


In overseas market ,We exported to Saudi Arabia,Malaysia , Singapore , United states , Netherlands ,Colombia,Germany,Canada,Korea,ect.


In Domestic market ,we cooperate with FOXCONN GROUP,SWA GROUP,KEDALI GROUP ,ect.


ISO ,SGS,MSDS,SVHC,ROSH report can be guarantee quality by third party .



Diamond Pattern Orange Peel Aluminum Sheet Refrigerator Inner Panel Used
